Description

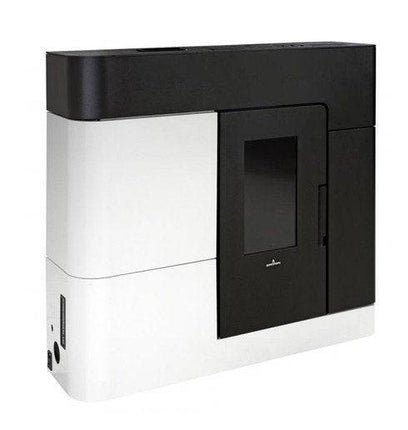

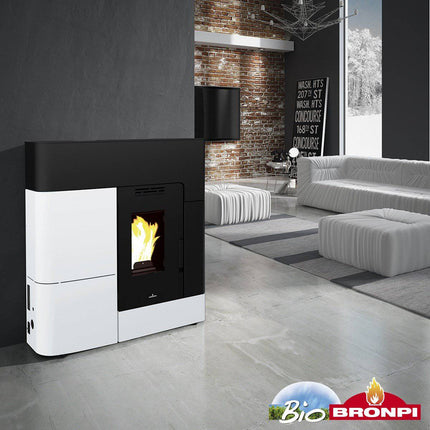

Clara H by Bronpi is a powerful pellet thermostove with an elegant extra-flat design. You can control your stove from anywhere with the optional Wi-Fi kit. It has the capacity to heat up to 422 m3. Possibility of top, side or rear smoke outlet. Heating and DHW management. Includes remote control.
--
New version with easy access to maintenance.
- Oasys Plus
- Dual Camera System
- Clean Glass System
- Modulation System
- Model designed for easy access to maintenance
- Compatible with WIFI Kit
- Programmable
- Max power: 18.4kw
- Max-min power: 17-5kw
- Max-min air power: 2.7-0.3kw
- Power transferred to water: 14.2-4.8kw
- Performance: 92-96%
- Max-min consumption: 3.7-1.06kg/h
- Electric power: 150-400W
- Heated volume: 422m 3
- Tank capacity: 25kg
- Metallic Interior
- Cast iron burner
- Min-max autonomy: 6.7-23.5h
- Weight: 169kg
- Smoke outlet diameter: 80mm
- Air suction diameter: 40mm
- Working pressure: 1.5bar
- Maximum working pressure: 2.5bar
- Remote control or switchboard
- Closed expansion vessel: 6 l
- Drain valve
- circulator pump
- Number of radiator elements: 101*
- Underfloor heating: 140* m2
- Possibility of top, side or rear smoke outlet
- Safety system: S2: Pellet safety thermostat, water safety thermostat, pressure gauge or micro-switch, pressure switch or pressure transducer and 3 bar safety valve
- Compatible accessories not included: WIFI KIT/VAL-02/VAL-04/T-AMB/CRONO-01
- COMPULSORY COMMISSIONING BY THE TECHNICAL SERVICE
- * The calculation of radiators and floor has been determined according to normal insulation conditions of the home and located in a temperate zone. Aluminum radiator elements 60 cm high with a thermal jump of 50º, 120 kcal/element, have been considered. Check characteristics (power) of the radiator to use.
